Ultrabase Foundation Panel - Roller Hockey Surface or Synthetic Ice Base

Ultra Base Foundation Panels are used to create a flat and stable base for synthetic ice or as a surface to play roller hockey on. A great alternative to concrete or asphalt.

Want a roller hockey or synthetic ice rink in your yard but don't want to install a concrete court or take up your garage space? This is a great alternative.

• Temporary - great if you plan to move (take it with you!) or the installation of large permanent surfaces like concrete or asphalt aren't feasible or allowed.
• Easy to install
• Installs on top of flat compacted sand or similar substrate (remove any organic material like grass or topsoil)
• Requires the purchase and installation of permeable geotextile fabric as this acts to stabilize the tiles on top of the natural base.

PANEL DIMENSIONS: Actual panel dimension 30” x 30” x 1.25” / 762mm x 762mm x 31.75 mm
SQUARE FOOTAGE AREA ONCE INSTALLED: 28” x 28”x 1.25”/ 711.2mm x 711.2mm x 31.75 mm = 5.44 ft² /.505 m²

PANEL WEIGHT: Average panel weight: 1.86 lbs per sq ft / 9.16 kg per sq m 10.2 lbs / 4.63 kg per panel

More information can be found here:

        https://ultrabasesystems.com/foundation-panel/

        https://ultrabasesystems.com/hockey/

Installation Requirements:

1. Proper ground preparation is required including the removal of any organic material and ensuring the ground is flat, properly pitched for drainage, and machine compacted.

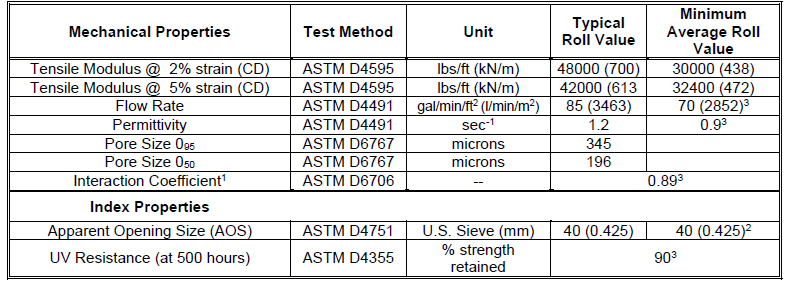

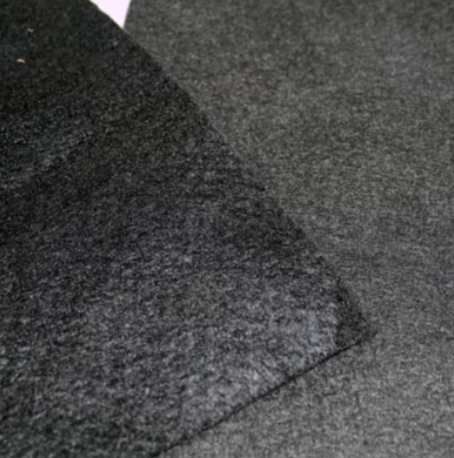

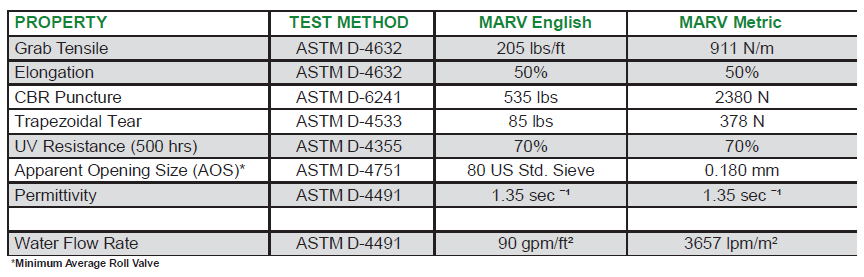

2. A geotextile fabric is required to lay down between the ground and the panels to ensure proper functionality
3. This is very similar to preparing the ground for a patio installation - most landscapers are easily able to do this.

Please consult with an EZ ICE Backyard Rink expert before purchasing to ensure your application fits.

This is a great video of Coach Jeremy installing Ultrabase panels for a sport-court base: https://www.youtube.com/watch?v=NfSlCu5nqM8
